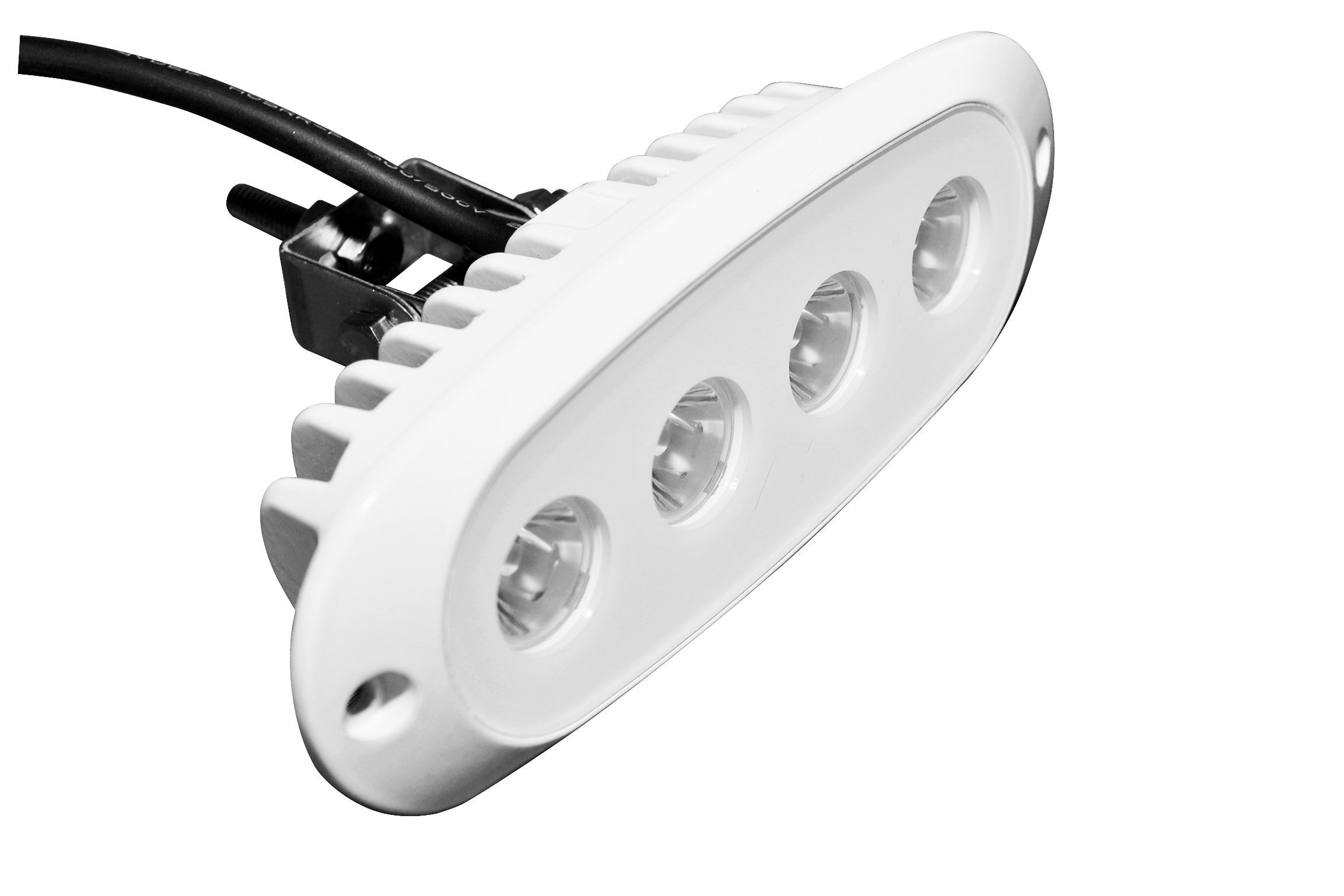

Low Profile Recessed LED Light (12/24V): Recessed Kevin X4

8mm (0.3”) Low Profile 800 Lumen LED Recessed Light:

800+ lumen rated high-power LEDs provide the highest
lumen-per-watt light, outperforming other LED lights in its class.

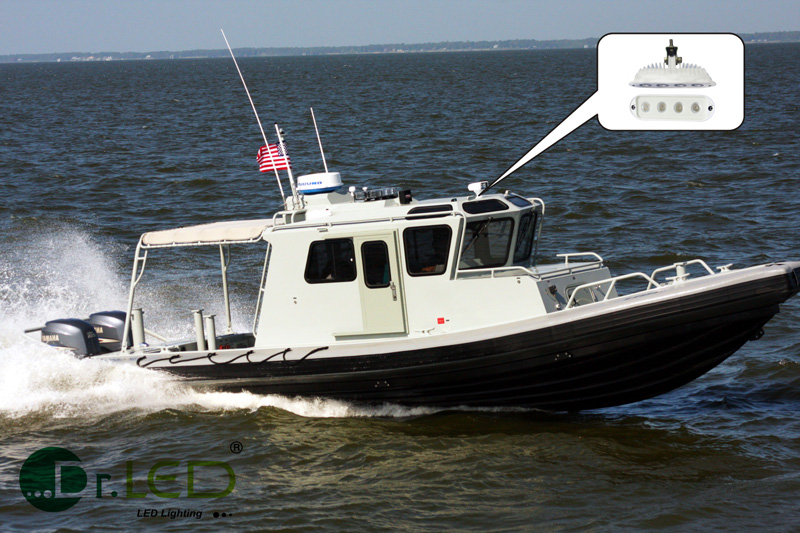

Designed to be mounted in most locations including recessed mounting such as cockpits, transom, foredeck, etc.

Replaces 50W halogen spotlight.  Flush-mount or bracket-mount.

Die cast aluminum alloy housing provides an ample heat sink as well as ingress protection to ensure a long operational life.

Marine grade powder coated finish.

Ultra-long life.  Shock and vibration resistant.

NMMA, USCG, ISO 8846 & SAE J1171 Ignition Protection Compliant.

• NMMA, USCG, ISO & SAE Ignition Protection Compliant.
• IP67, MIL-STD-810G Shock & Vibration Resistant, ASTM B117 Salt Spray (Fog) Compliant.
• CE, RoHS Compliant.
• 6,000 Degree Kelvin Cool White with 800+ Lumens
• 50,000 Hour Life Span rated US CREE LEDs.
• Long Service Life, Shock Resistant, Ultra-Rugged with no filament to burn out or break.
• Operating Temperature: -40 to +145 Degree F (-40 to +63 Degree C).



Specifications:

Mechanical: Marine Grade Powder Coated Finish Acrylic Lens Die-Cast Aluminum Alloy Housing 4mm dia. Flush-Mount Holes 316 Stainless Steel 1.5” U Bracket-Mount with a 40mm M5 Bolt 1M 18AWG 300V Red/Black Cable Dimensions: 150mm (5.9”) width, 58mm (2.28”) height, 40.5mm (1.59”) deep Recessed Mount Cut-Out Requirement: 115.8mm (4.56”) x 45mm (1.77”) x 40.5mm (1.59”) deep Weight: 275g (9.7oz)



Electrical:

Input Voltage: 10-30 VDC (1A @ 12 V, 0.5A @ 24V)

Max Input Power: 12W

Polarized Connection, Reverse Polarity Protected

Under-Voltage and Voltage Spike Protected

Electrically Protected Against RFI/EMC Interference



Mechanical:

Marine Grade Powder Coated Finish

Acrylic Lens

Die-Cast Aluminum Alloy Housing

4mm dia. Flush-Mount Holes

316 Stainless Steel 1.5” U Bracket-Mount with a 40mm M5 Bolt

1M 18AWG 300V Red/Black Cable

Dimensions: 150mm (5.9”) width, 58mm (2.28”) height,
40.5mm (1.59”) deep

Recessed Mount Cut-Out Requirement: 115.8mm (4.56”) x 45mm (1.77”) x 40.5mm (1.59”) deep

Weight: 275g (9.7oz)

Light Specfications
Color	Cool White
Color Temperature (K)	6000
Mechanical Specfications
Connection Base	Wire Pair
