36-44mm Festoon Star

Dr. LED 36mm to 44mm festoon LED bulb

36mm 39mm 41mm 44mm Marine LED Festoon Bulbs

Finally, 1-to-1 festoon Marine LED replacement bulbs for 2NM navigation lights.


Truly Innovative LED Solutions.

  • Replaces 36mm 39mm 41mm 44mm festoon bulbs
  • 12V and 24V
  • 2NM & 360 degrees visibility
  • Good for navigation and non-navigation lights
  • 90 warm white Lumens output
  • Draws ~1.8W

12V White PN:9000241

12V Red PN:9000548

12V Green PN:9000555

12V Blue PN:9000562

24V White PN:9000357

Descriptions

Finally, true one-to-one LED replacement bulbs for incandescent navigation and interior festoon bulbs. These festoon LED bulbs are specially designed as direct replacements for many navigation as well as interior lights.  They are compatible with many Perko fixtures such as series 0120, 0170, 106, 108, 109, 110, 111, 259, etc.  These marine festoon LED bulbs also work with aqua signal series 25, Forespar ML-2, as well as Hella series 3562 and 8505.  These high-quality high-power marine LED festoon bulbs are the perfect way to reduce energy consumption on your boat with a current draw of only about 0.1A.  Their incredible reliability means an end to frequent climbs up the mast to replace navigation light bulbs.

Product Features

  • Replaces 36mm to 44mm pointed and dimpled festoon bulbs.
  • 12 VDC Replaces Perko bulbs # 0069DP0CLR (Perko bulb fig. 69) and #0070DPxCLR (Perko bulb fig. 70).
  • 24 VDC Replaces Perko bulbs # 0067DPxCLR (Perko bulb fig. 67)
  • * High-Power LED *2 NM visibility *12 VDC or 24 VDC *Warm White
  • Zero radio frequency (RF) emission, surface-mount-device design.
  • Internal circuitry provides constant current draw regardless of voltage fluctuations from the source meaning no flickering and longer LED life.
  • Long service life, shockproof, and ultra-rugged with no filament to burn out or break.
  • Very low power consumption (approximately 1.5 W).
  • Lead and mercury free, no UV output.
  • Designed in the USA

F.A.Q

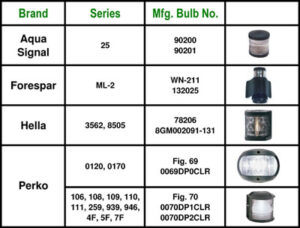

Compatible with 12V aqua signal fixtures series 25 bulbs 90200, 90201, etc.

Compatible with 12V Forespar fixtures series ML-2 bulbs WN-211, 132025, etc.

(Deck light uses MR16 bi-pin bulb.)

Compatible with 12V Hella fixtures series 3562, 8505 bulbs 78206, 8GM002091-131, etc.

Compatible with 12V Perko fixtures series 0120, 0170 bulb Fig. 69, 0069DP0CLR.
Compatible with 24V Perko fixtures series 0120, 0170 bulbs Fig. 67, 0067DP1CLR, and 0067DP2CLR.

Compatible with 12V Perko fixtures series 0106, 0108, 0109, 0110, 0111, 0259, 939, 946, 4F, 5F, 7F bulbs Fig. 70, 0070DP1CLR, and 0070DP2CLR.

12V Bulbs Replace

Perko Bulbs Fig. 69, Fig 70, 0069DP0CLR, 0070DP1CLR, and 0070DP2CLR.

Ancor Bulb # 529095, 529104, 522126, 522131, 522112, 522122, 529333, etc.

Trade # 211-2, 212-2, 560, 569, 578, etc.



24V Bulb Replaces:

Perko Bulb Fig. 67, 0067DP1CLR, and 0067DP2CLR.


Dimensions:  ~36mm (1.4”) long, 12mm (0.5”) dia.

Two pointed caps and two dimpled caps are provided to extend length from 36mm to up to 44mm.

12V 36 to 44mm Festoon Star Recommended Applications:

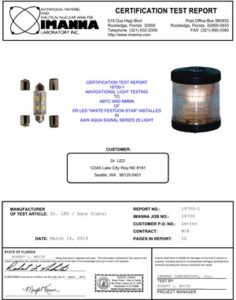

ABYC A-16 and USCG COLREG 1972 (IMO) Standards Certificate: Certified for correct Chromaticity, Luminous Intensity, and Cut-off Angles.
