28-31mm Marine Festoon Navigation LED Bulbs

12V 24V 28-31mm Festoon Star Marine LED Bulbs

Finally, 1-to-1 festoon LED replacement bulbs for 2NM navigation lights.

Truly Innovative LED Solutions.

  • Replaces 12V Perko Bulb Fig.71 (Ancor # 529102) and 24V Perko Fig.72 (Ancor # 522129)
  • Replaces most 28mm to 31mm festoon bulbs
  • 12V and 24V
  • 2NM & 360 degrees visibility
  • Good for navigation and non-navigation lights
  • 60 warm white Lumens output
  • Draws ~1.2W

12V White PN:9000173

12V Red PN:9000586

12V Green PN:9000593

24V White PN:9000463

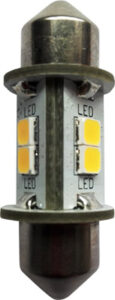

Dr. LED festoon LED bulb

(One pointed cap is provided to extend the length of this marine LED festoon bulb from 28mm to 31mm.)

12V Replaces Perko Bulbs Fig. 71 and Ancor # 529102

24V Replaces Perko Bulbs Fig. 72 and Ancor # 522129

Descriptions

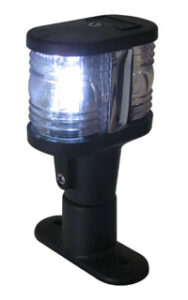

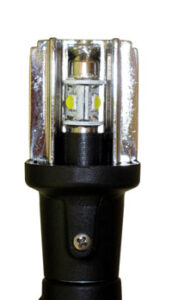

Finally, true one-to-one LED replacement bulbs for small incandescent navigation light festoon bulbs. These short festoon LED bulbs are specially designed as direct replacements for many combination masthead & anchor lights.  These marine festoon LED bulbs are compatible with many Perko fixtures such as those from series 1123, 1124, 1125, 1178, 1181, 1183, 1184, 1196, 1197, etc.  These high-quality high-power marine LED festoon bulbs are the perfect way to reduce energy consumption on your boat with a current draw of about 0.1A.  These marine LED bulbs are incredible reliability means to an end to frequent climbs up the mast to replace navigation light bulbs.

Product Features

  • Replaces small pointed festoon bulbs.
  • 12V Replaces Perko bulb # 0071DP0CLR (Perko Bulb Fig. 71) and Ancor bulb #529102.
  • 24V Replaces Perko bulb # 0072DP0CLR (Perko Bulb Fig. 72) and Ancor bulb #522129.
  • * High-Power Marine LED Bulbs     *2 NM visibility      *12 VDC and 24VDC      *Warm White
  • Zero radio frequency (RF) emission, surface-mount-device design.
  • Conformal coated & use of long life components: e.g. ceramic capacitor (not low hour electrolytic capacitor).
  • Internal circuitry provides constant current draw regardless of voltage fluctuations
    from the source, meaning no flickering and longer LED life.
  • Long service life, shock-resistant, and ultra-rugged with no filament to burn out or break.
  • Very low power consumption (approximately 1.2 W).
  • Lead and mercury free, no UV output.
    Designed in the USA.
  • Dimmable with PWM dimmers.
  • Dimensions: ~28mm (1.1”) long, 11mm (0.43”) dia.

F.A.Q

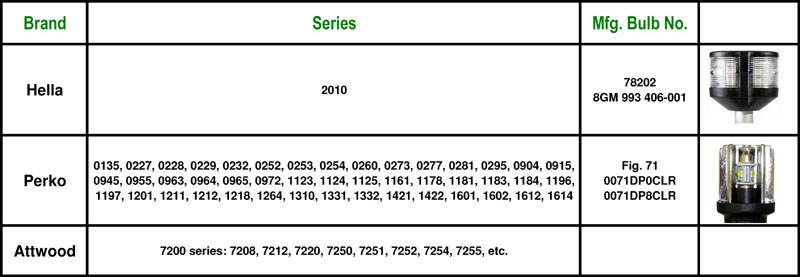

Compatible with 12V aqua signal fixtures series 25 bulbs 90200, 90201, etc.

Compatible with many Hella fixtures series 2010, etc.

Compatible with many Attwood fixtures 7200 series: 7208, 7212, 7220, 7250, 7251, 7252, 7254, 7255, etc.

Replaces 12V Perko Bulbs Fig. 71, 0071DP0CLR, 0071DP8CLR, etc.

Replaces 24V Perko Bulb Fig. 72, 0072DP8CLR

Replaces 12V Hella Bulbs 78202, 8GM 993 406-001, etc.

 Recommended Applications
