Marine LED Spreader Lights

Marine LED Spreader / Deck Lights

Dr. LED marine LED lights, the US Navy specifies the use of Dr. LED's lights.

#1 Selling Marine LED Deck Lights.

Best Selling Boat LED Spreader Lights.

12V 24V Kevin X4 LED Spreader / Deck Lights.

12V 24V Recessed Kevin X4 LED Deck Light.

12V 24V Kevin X2 LED Spreader / Deck Light.

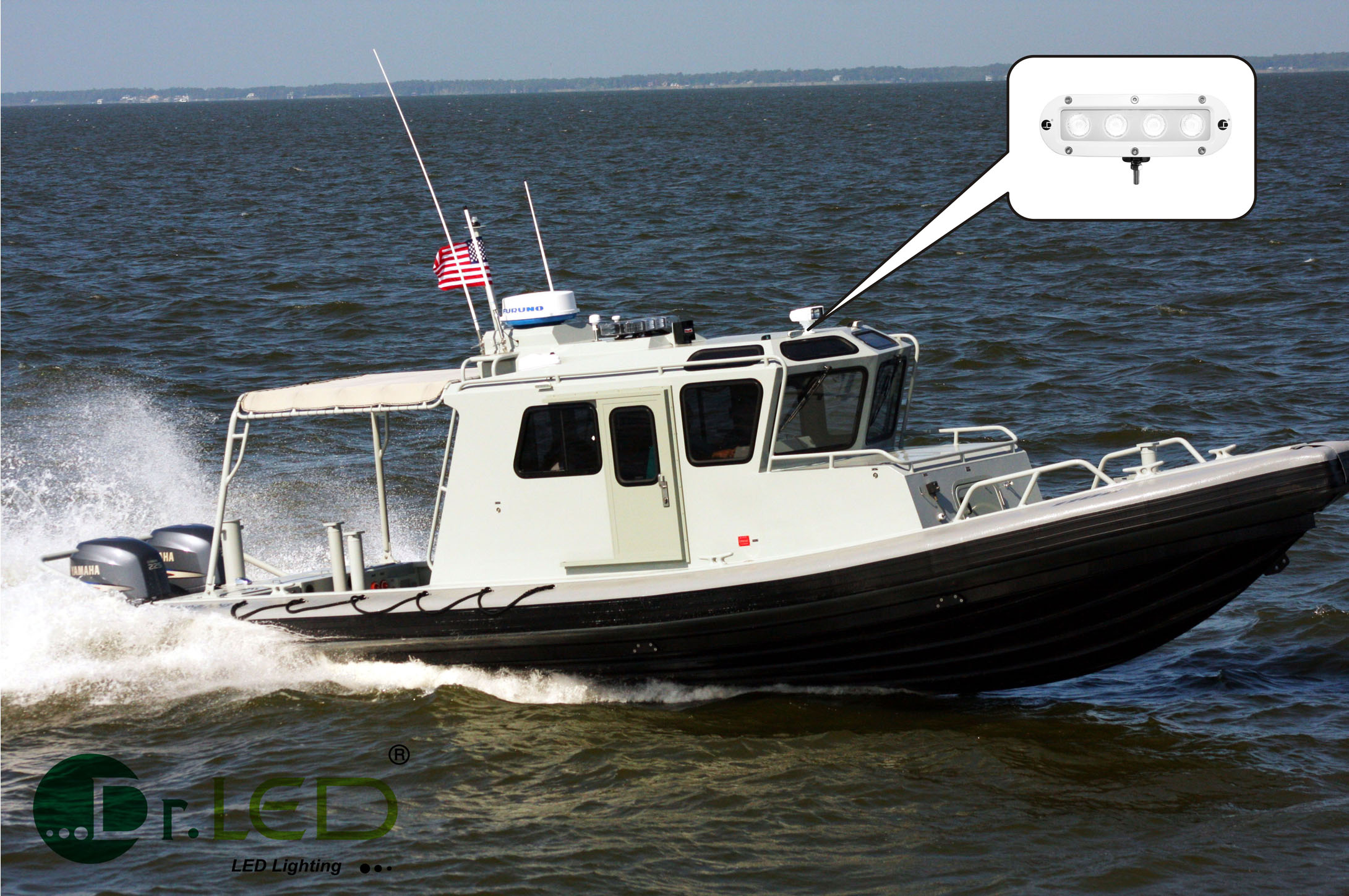

Use and specified by the US Government with national stock numbers.

Four Models to choose from:

PN:8001344-02 NSN: 5961016025452
4 x US CREE LEDs 1380 Lumens White Body
PN:8001993
4 x US CREE LEDs 1380 Lumens Black Body
PN:9000685
4 x US CREE LEDs 800 Lumens White Body
PN:9000470 NSN: 6220-01-646-3873
2 x US CREE LEDs 600 Lumens White Body

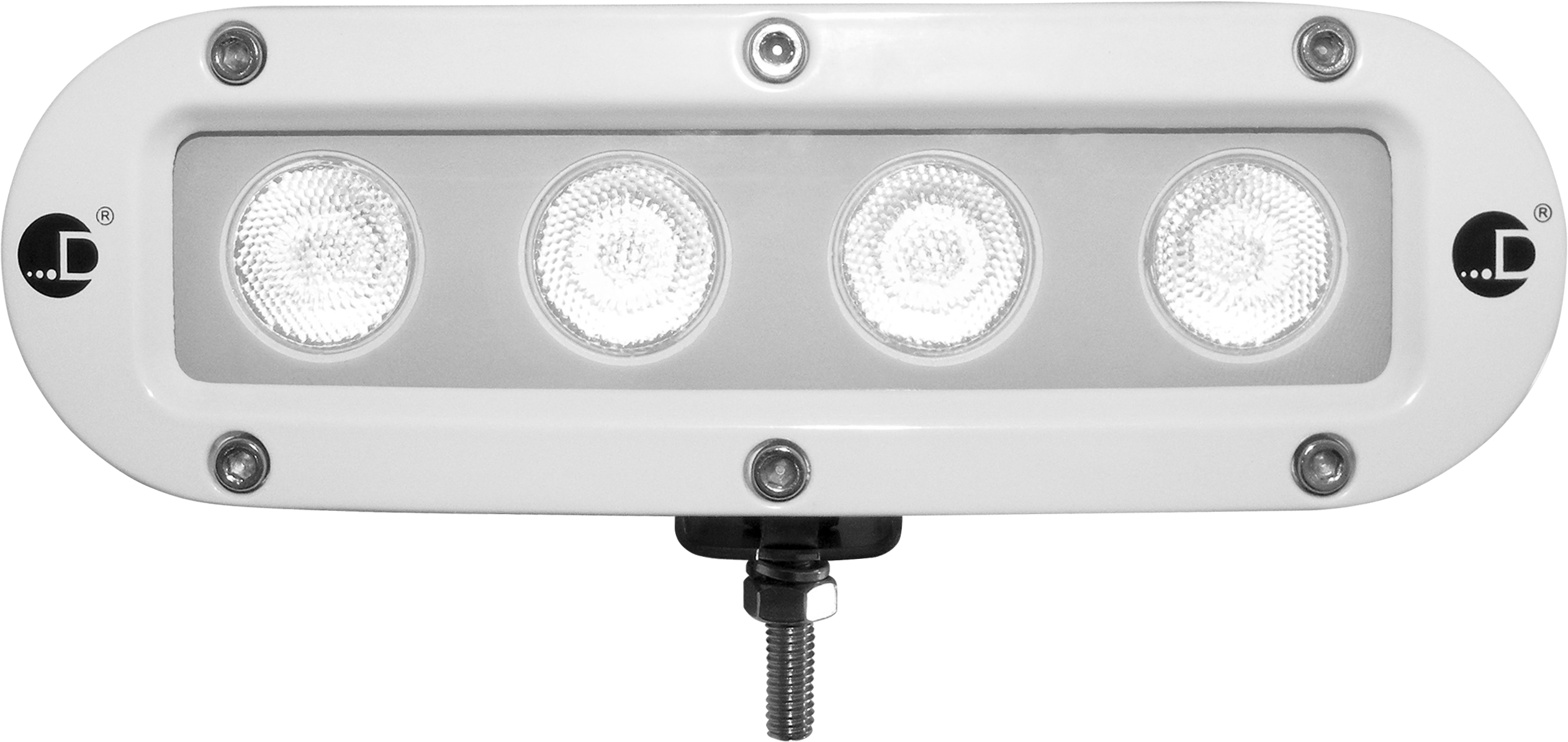

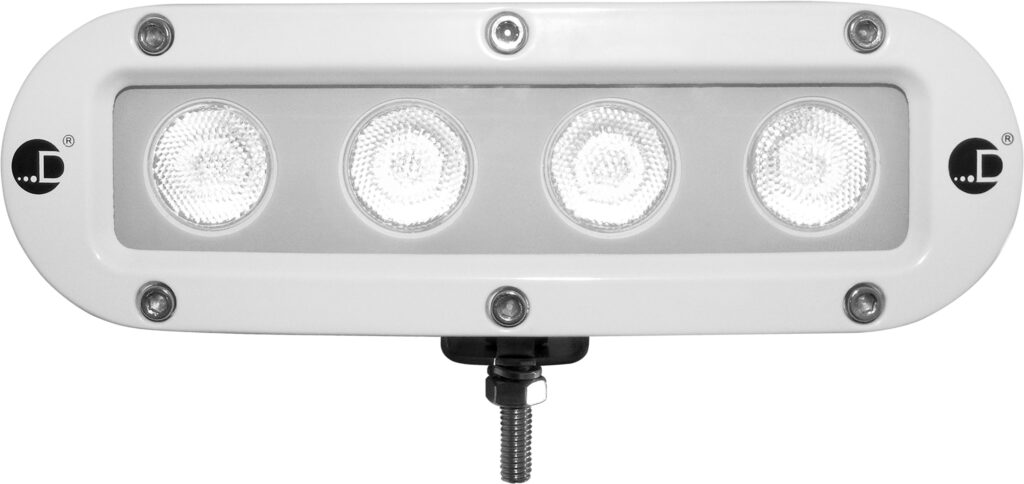

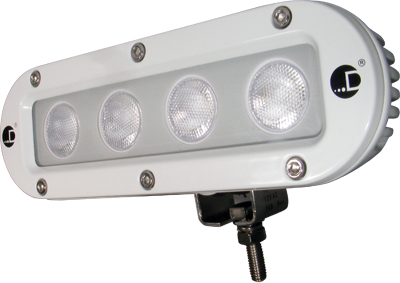

12V 24V Kevin X4 Marine LED Spreader Light.

12V 24V Kevin X4 Boating LED Deck Light.

Part No.:8001344-02

National Stocking No.: 5961016025452

Key Features:

Four US CREE High-Power LEDs
1,380+ 6000K Lumens LED Light
Highest lumen-per-watt LEDs outperform most other LED lights in their class
Replaces 50W halogen light
NMMA, USCG, ISO 8846 & SAE J1171 Ignition Protection Compliant
IP68, MIL-STD-810G Shock & Vibration Resistant, ASTM B117 Salt Spray (Fog) Compliant.
CE, FCC Part 15, RoHS Compliant.
Operating Temperature: -40 to +145 Degree F (Withstands temperature extremes).
Designed in the USA

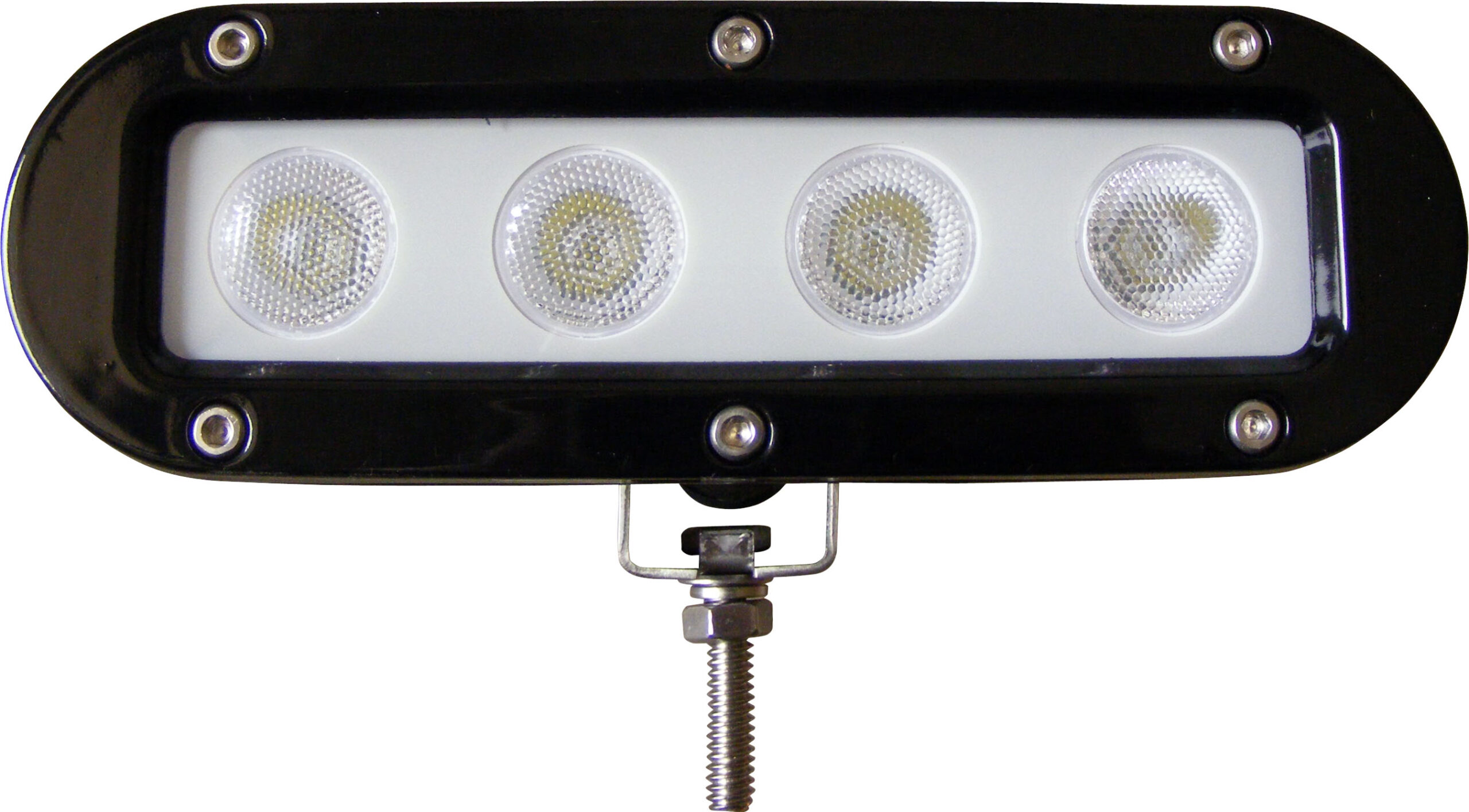

12V 24V Black Kevin X4 Marine LED Spreader Light.

12V 24V Kevin X4 Boating LED Deck Light.

Part No.:8001993

Key Featrues:

Four US CREE High-Power LEDs
1,380+ 6000K Lumens LED Light
Highest lumen-per-watt LEDs outperform most other LED lights in their class
Replaces 50W halogen light
NMMA, USCG, ISO 8846 & SAE J1171 Ignition Protection Compliant
IP68, MIL-STD-810G Shock & Vibration Resistant, ASTM B117 Salt Spray (Fog) Compliant.
CE, FCC Part 15, RoHS Compliant.
Operating Temperature: -40 to +145 Degree F (Withstands temperature extremes).
Designed in the USA

Descriptions

The Kevin X4 is a general-purpose waterproof marine LED light with four US CREE high-power LEDs. This light is fabricated from the highest quality components to assure long life and trouble-free functioning. Die-cast aluminum alloy housing provides an ample heat sink to the LEDs to ensure long-life operation. Their patented internal circuitry provides consistent brightness and makes them immune to life-shortening voltage fluctuations. Their relatively low power draw (1.5A @ 12V) makes them the perfect way to reduce energy consumption.

Features

For your yacht or your yard.
For your dock or your deck.
Designed to be mounted up to 30’ above deck with an aerodynamic shape.
Die-cast aluminum alloy housing.
Marine-grade white powder-coated finish.
Rugged and with an ample heat sink to the LEDs to ensure long-life operation.
Multi-voltage 12VDC or 24VDC (10-30VDC) or 12VAC.
Works on most low-voltage outdoor lighting systems.
Instant-on, no warm-up of bulb needed.
Long service life.
Modern styling and compact design.
Shock-resistant, ultra-rugged with no filament to burn out or break.

Specifications

Input Voltage: 12VDC or 24VDC (10-30DC) or 12VAC, Non-Polarized Connection
Under-Voltage and Voltage Spike Protected, Electrically Protected Against RFI/EMC Interference
Current Draw: ~1.5A @ 12V, ~0.75A @ 24V
Max. Input Power: ~20W
Light Output: ~1380 Lumens
Color Temperature: ~6000 K
Ingress Rating: IP67
Lens Material: Polycarbonate
Fixture Material: Die-cast powder-coated aluminum alloy body
Fixture Dimensions: 154 mm width, 50 mm height, 66 mm depth (6.1” W X 2.0” H X 2.6” D)
Mechanical Connection: one 1/4″ dia. hole (1/4-20 nut).
Electrical Connection: 1M cable
Weight: 522g (~ 18 oz)

Catalog and Downloads

Dimensions Drawing

12V 24V Kevin Jr. X2 LED Spreader /Deck Light

Specified and used by the US Government with national stock number (NSN): 6220-01-646-3873.

US Patent D716,986S.

Part No.: 9000470

Key Features:

Two US CREE High-Power LEDs
600+ Lumens 6000K LED Light
Highest lumen-per-watt LEDs outperform most other LED lights in their class
Replaces 50W halogen light
Spreader / Deck / Spot LED Light
NMMA, USCG, ISO 8846 & SAE J1171 Ignition Protection Compliant
Built-in IP68 magnetic switch to cycle the light between high/low/strobe (6Hz)/off.

Descriptions

The Kevin Jr. X2 powers up in high beam mode. One can use the built-in IP68 magnetic switch to cycle the light between high/low/strobe (6Hz)/off when installed in an accessible location.

Specifications

Electrical:
Input Voltage: 12VDC or 24VDC (10-30VDC)
Current Draw: 0.6A @ 12.8 VDC
Max Input Power: 8W
Non-Polarized Connection
Under-Voltage and Voltage Spike Protected
Electrically Protected Against RFI/EMC Interference
Integrated Thermal Management

Mechanical:
Durable Powder Coated Finish
Tempered Glass Lens
Die Cast Aluminum Alloy Housing
Low Profile Stainless Steel U Bracket Mount with ¼” Bolt or ¼” 20 UNC Thread Tripod Mount
1M Long 5mm dia. 20AWG 300V Red/Black Cable
Dimensions: 90mm (3.5”) width, 50mm (2”) height, 79mm (3.1”) depth
Weight: 400g (14oz)
